Build the table.Keep the precision.
Precision laser-cut DIY welding fixture table kits for fabricators who already have the tools and would rather put their own labor into the build.
1/4" steel · 5/8" fixture holes · 2" centers · ±0.015" laser-cut component tolerance
Pick the footprint. Weld it your way.
The DIY kit is the standard Datum configuration. If you want us to weld the tabletop or build the complete table, those options are available at a premium.
2×4
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit2×6
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit3×3
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit3×5
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit3×6
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit4×4
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit4×5
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit4×6
1/4" steel · 5/8" holes · 2" centers
View configurations → DIY Fixture Table Kit4×8
1/4" steel · 5/8" holes · 2" centers
View configurations →
The tabletop becomes the assembly fixture.

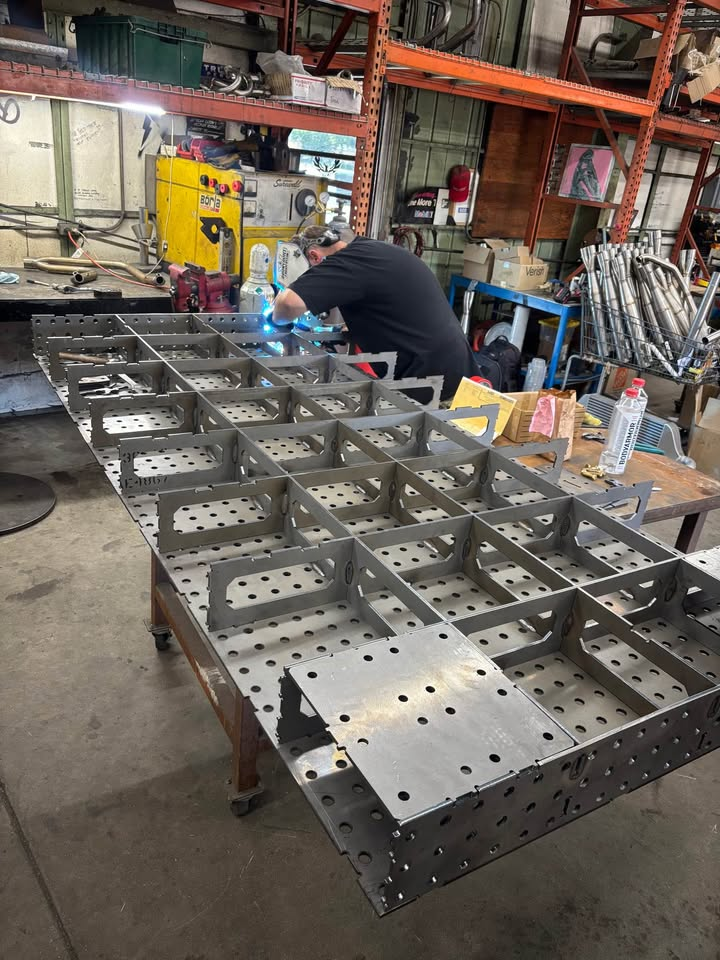

The laser-cut top establishes the reference plane. Tabs and slots locate the internal rib-and-stiffener matrix. Included assembly draw plates pull the structure tight against the underside of the top before welding.
- Lay the tabletop face-down
- Install the rib and stiffener matrix
- Install draw plates from the center outward
- Recheck previously tightened plates as the structure seats
- Tack the tab-and-slot joints
- Install perimeter panels and build the base
- Keep draw plates installed through the flip
Draw it tight before you weld it.

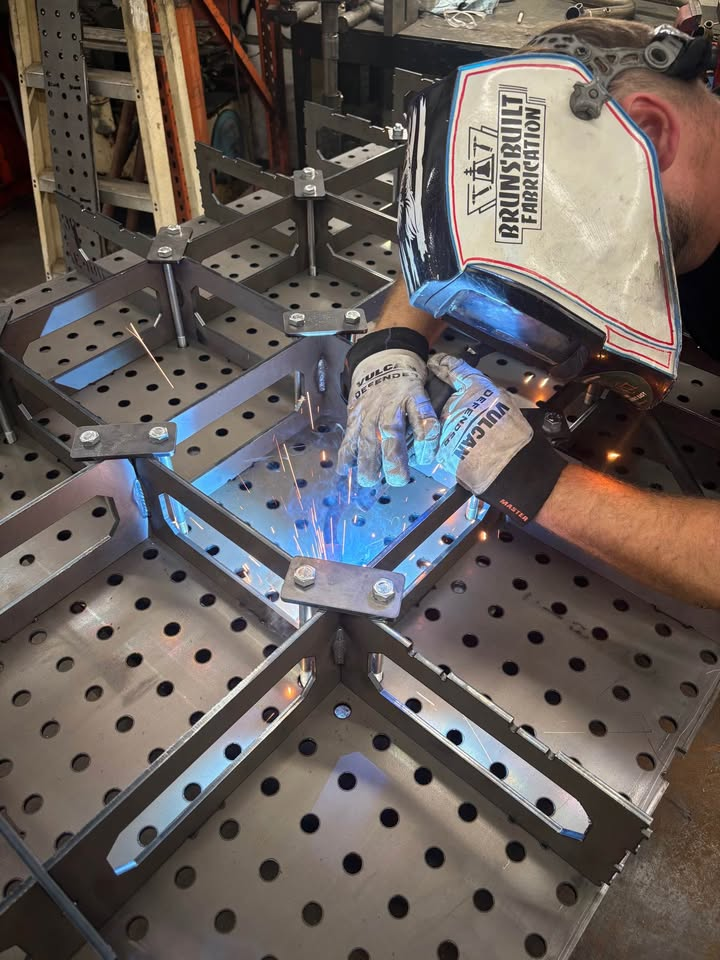

The supplied assembly draw plates bridge the internal ribs and bolt through the fixture grid. Tightening them pulls the rib structure firmly against the tabletop so the laser-cut geometry—not eyeballing—controls the fit-up.
Draw plates are temporary assembly tools and are removed only after the table structure is fully built and stable.
DIY is the product. Fabrication is the upgrade.
Every standard size is available in three configurations. The more shop labor you hand to us, the more you should expect to pay for it.
DIY Kit
Precision-cut table components and assembly draw plates. You handle the welding.
5–7 business daysWelded Tabletop
We fabricate the complete fixture-table body. You supply or build the base.
7–10 business daysComplete Table
Fully fabricated fixture table, base and casters. Ready to put to work.
10–15 business days

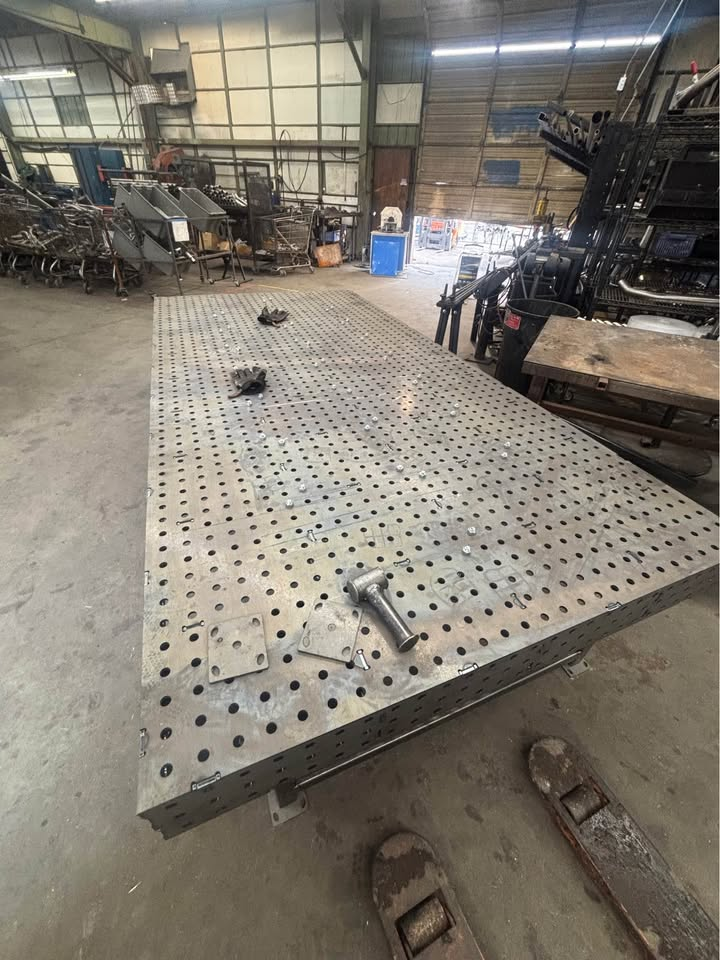

Datum 510 Production Fixture Table
For shops that need more working area, the 510 uses the same fixture-table concept at roughly 117" × 57".
- 1/4" HRPO steel
- Fixture holes on top and sides
- Internal ribbed construction
- Heavy-duty welded steel legs
- Locking casters
- Optional leveling feet
Fully fabricated: $5,549
Ask About the 510Made to order. Paid in full.
Standard Datum products are paid in full at checkout and enter the production queue once payment is received.
Local Pickup
Pickup by appointment in Riverside, California. We notify you when the order is ready. Completed pickup orders should be collected within 7 days unless other arrangements are made.
Need Freight?
LTL freight is quoted manually for V1. Product price and production lead time do not include freight or transit time.
Request a freight quote →Custom Size?
Need a footprint outside the standard lineup? Send the dimensions and intended configuration and we’ll quote it manually.
Request a custom table quote →What Datum guarantees—and what depends on you.
Laser-cut component tolerance: ±0.015" unless otherwise specified. This is a component tolerance, not a finished-table flatness guarantee.
DIY assembly: final table flatness, geometry and finished condition depend on proper fit-up, weld sequence, heat control and fabrication technique.
Raw steel: normal mill variation, handling marks, minor scratches, discoloration and light surface oxidation may be present when they do not affect fit or function.
Cancellations: orders may be cancelled before material is ordered or production begins. Once material is ordered or production begins, the order is non-cancellable and non-refundable except for a verified manufacturing defect or fulfillment error.
